How to Size a Nitrogen Trailer for Your Pipeline Project

Undersizing your nitrogen source is one of the most common and costly mistakes in pipeline operations. It leads to extended job duration, additional mobilization charges, and in the worst case, an incomplete purge that creates safety exposure. This guide gives you the basic framework to correctly specify nitrogen trailer requirements for the three most common applications: purging, pressure testing, and drying.

Step 1 — Calculate Pipeline Internal Volume

Everything starts with internal volume. Use this formula:

For quick field estimation, use these approximate values per 1,000 feet of pipe:

• 4-inch pipe: ~87 cubic feet per 1,000 ft
• 6-inch pipe: ~196 cubic feet per 1,000 ft
• 8-inch pipe: ~349 cubic feet per 1,000 ft
• 12-inch pipe: ~785 cubic feet per 1,000 ft
• 16-inch pipe: ~1,396 cubic feet per 1,000 ft
• 24-inch pipe: ~3,142 cubic feet per 1,000 ft

Step 2 — Convert to SCF (Standard Cubic Feet)

Nitrogen trailer capacity is rated in SCF at standard conditions (14.7 psia, 60°F). To convert pipeline volume to SCF required:

Step 3 — Match to Trailer Capacity

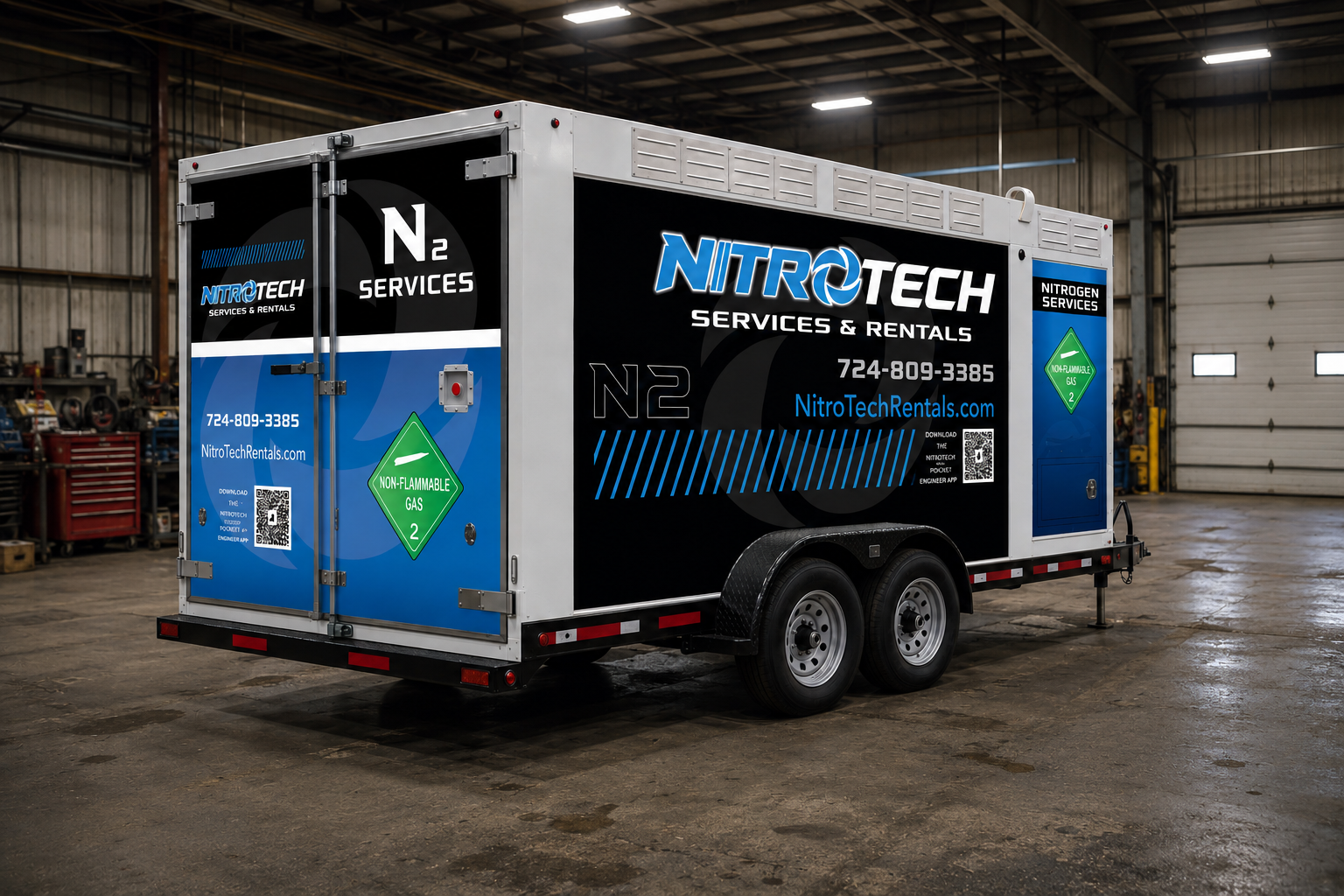

A NitroTech high-output nitrogen trailer provides 50,000+ SCF of usable product. For a simple purge of a 6-inch, 10-mile pipeline:

• Pipeline volume: 196 CF/1,000 ft × 52,800 ft = approximately 10,349 CF
• SCF required at 1.5x factor: ~15,500 SCF
• One NitroTech trailer (50,000+ SCF) provides 4x the required volume — ample for purge plus pressure hold

For larger diameter or longer lines, use this as your planning baseline: one NitroTech trailer per 40,000 to 50,000 SCF of total project requirement.

Step 4 — Consider Flow Rate Requirements

Volume capacity tells you how much nitrogen is available, but flow rate determines how fast you can deliver it. For pipeline drying applications in particular, sustained high flow rate is critical to achieving target dew point within your window. NitroTech trailers are designed for high-flow delivery, and our team can confirm specific flow rates for your pressure requirements before you mobilize.

Multi-Unit Deployments

For projects requiring more than one trailer, NitroTech can deploy multiple units simultaneously. Units can be manifolded together at the injection point for combined flow rates, or staged at multiple points along the right-of-way for line segment purging. There is no project too large for a properly staged multi-unit deployment.

When in Doubt, Call Henry

Nitrogen sizing is straightforward once you have the pipe data, but field conditions — elevation changes, residual pressure, temperature — can affect requirements. NitroTech's team reviews project parameters with clients before every deployment to ensure the right equipment shows up the first time.
