ADVANCED N2 SOLUTIONS — AN HONEST COMPARISON

NitroTech Trailer vs. Standard Bobtail Rig

Bobtail rigs were the industry standard for decades. NitroTech’s advanced N2 trailer was engineered to outperform them on the operations that drive most modern industrial, refinery, and data center work. Here’s the straight comparison.

For the vast majority of nitrogen jobs across our service corridor, NitroTech is the better tool.

THE SMARTER CHOICE FOR MODERN TESTING OPERATIONS

NitroTech vs. Bobtail at a Glance

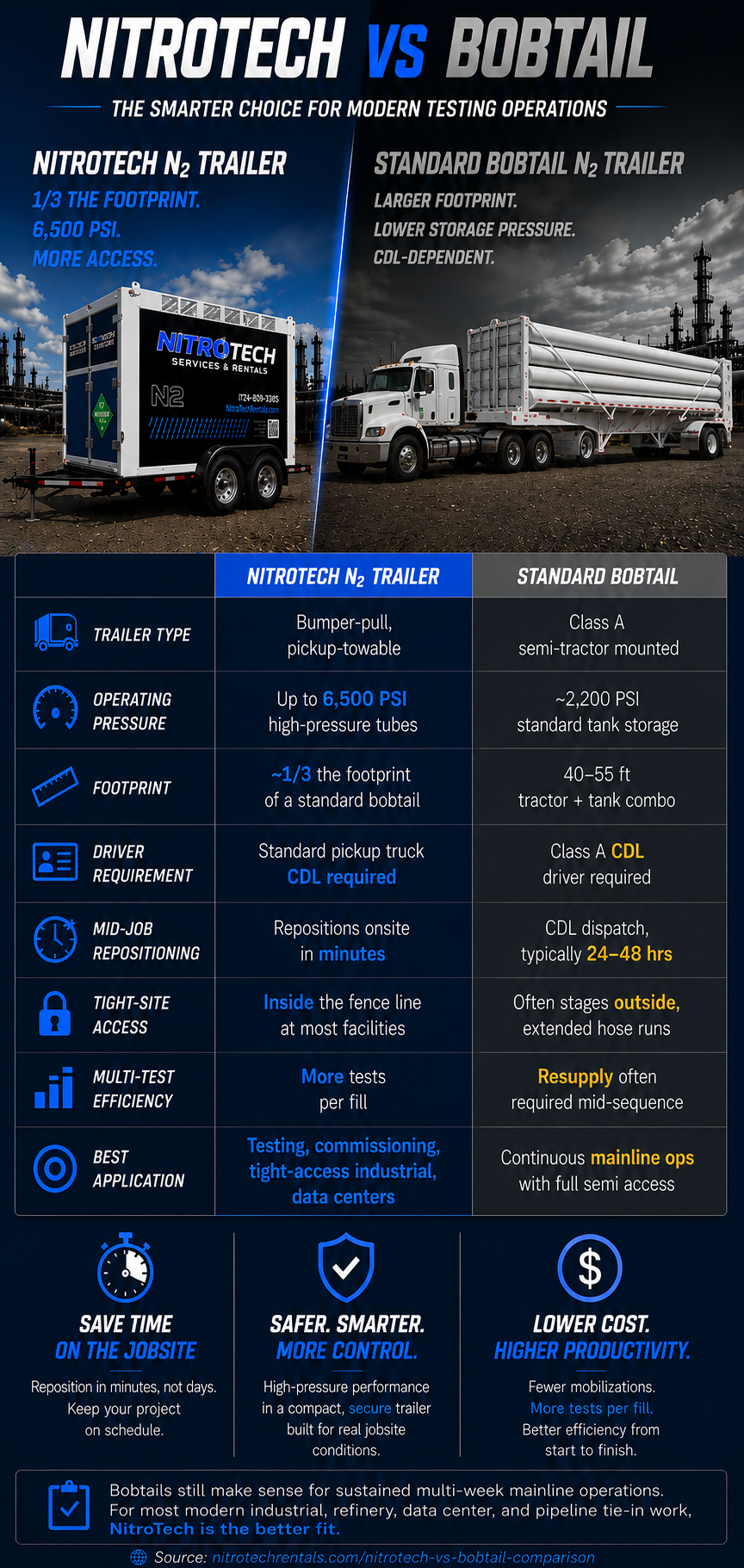

NitroTech N2 trailer vs. standard bobtail nitrogen trailer side-by-side comparison infographic — 1/3 the footprint, 6,500 PSI, no semi-tractor required

A full side-by-side breakdown follows below.

THE REAL TRAILER. NOT A RENDER.

Field-Tested. Crew-Trained. Deployed Nationwide.

Every claim on this page is backed by equipment that’s actually in service.

NitroTech N2 nitrogen trailer real field photo — side view with NitroTech branding, 724-809-3385 contact, NitroTechRentals.com URL
Real NitroTech nitrogen trailer hitched to a standard pickup truck at an industrial site — pickup-towable bumper-pull deploymentInside the NitroTech nitrogen trailer — field crew walkthrough with the equipment panel and 16 high-pressure storage tubes inside

SEE THE DIFFERENCE

Watch the NitroTech Trailer in the Field

Side-by-side comparisons are useful. Seeing the real equipment in operation is better.

THE THREE ENGINEERING DECISIONS

Why NitroTech Beats the Bobtail on Real Jobs

Three deliberate design choices that make the NitroTech N₂ trailer the better tool for modern industrial nitrogen work.

NitroTech N2 trailer takes up 1/3 the footprint of a standard tube-trailer bobtail (40-55 ft tractor + tank combo) — tighter sites, shorter hose runs, safer jobsNitroTech bumper-pull nitrogen trailer repositions in 4 steps: hook up to standard pickup, move onsite, set and test, repeat — no semi-tractor or dispatch downtimeNitroTech high-pressure nitrogen tube system stores N2 at 6,500 PSI — nearly 3x the storage pressure of standard bobtails (2,200 PSI). More nitrogen on board, more tests per fill, less downtime

Click any visual to read the deep-dive on that differentiator.

1/3
The Footprint
vs. a standard bobtail
6,500
PSI Max
high-pressure tubes
0
Semi-Tractor Required
standard pickup tows it
More
Tests Per Fill
multi-test efficiency

SIDE-BY-SIDE

Specification & Operational Comparison

No gaslighting. Where the bobtail is genuinely the right tool, we say so.

Category
NitroTech Trailer
Standard Bobtail
Trailer type
Bumper-pull, pickup-towable
Class A semi-tractor mounted
Operating pressure
Up to 6,500 PSI high-pressure tubes
~2,200 PSI standard tank storage
Trailer footprint
~1/3 the footprint of a standard bobtail
40–55 ft tractor + tank combo
Usable Product (SCF)
50,000+ SCF per trailer (select systems)
Varies by tank size and configuration
Driver requirement
Standard pickup truck (CDL required) — no semi-tractor
Class A CDL driver required for every move
Mid-job repositioning
Onsite operator repositions in minutes
CDL driver dispatch — typically 24–48 hrs
Tight-site access
Inside the fence line at most facilities
Often must stage outside — extended hose runs
Multi-test efficiency
More tests per fill via high-pressure storage
Standard storage — resupply often required mid-sequence
Sustained mainline volume
Multi-day continuous flow may need multiple trailers
Established fit for sustained multi-day mainline operations
Permit complexity
Standard vehicle rules — no commercial permits
Commercial vehicle, weight permits, route restrictions
Industry track record
Modern engineering — field-proven across East Coast industrial, refinery & data center work
Long-established industry standard with broad availability
Best application
Testing, commissioning, tight-access industrial, data centers
Continuous mainline ops with full semi access

A FEW NARROW EXCEPTIONS

Where a Traditional Bobtail May Still Be the Right Call

A small percentage of nitrogen operations still favor traditional bobtail rigs. We’re straight about it because credibility matters. These narrow scenarios are typically:

  • Sustained multi-week mainline pipeline runs with full semi access along the ROW — where total cumulative volume is the only spec that matters
  • Greenfield facilities specifically designed around bobtail dimensions with permanent rig staging zones built into the site plan

These represent a shrinking share of modern industrial nitrogen work. For everything else — East Coast facilities, refinery turnarounds, chemical plant work, data center commissioning, and the pipeline tie-in operations that make up the vast majority of real jobs — NitroTech’s advanced N2 trailer was purpose-built to outperform.

WHERE WE BUILT THE BETTER TOOL

Where the NitroTech Trailer Genuinely Wins

For the operations that define modern nitrogen field work, NitroTech’s advanced N2 trailer is the better tool. We engineered it specifically around the realities of the projects we serve — the projects where the bobtail leaves money, schedule, and execution on the table:

  • Access-constrained East Coast industrial sites — New Jersey refineries, Delaware Valley chemical plants, Pennsylvania energy infrastructure, Massachusetts LNG facilities — built before modern bobtail dimensions were a planning input
  • Multi-test commissioning sequences — high-pressure tube storage delivers more tests per fill, eliminating mid-sequence resupply delays on data center commissioning, pipeline pressure-test programs, and refinery turnaround restart sequences
  • Fast mobilization & mid-job repositioning — pickup-towable design means same-day dispatch, no semi-tractor logistics bottleneck, and operator-driven repositioning when scope changes
  • Hyperscale data center construction sites — congested logistics environments where a 50-foot rig blocking an access road is everyone’s problem and a bumper-pull trailer is a non-event
  • Tight-budget mobilization for short-duration jobs — the avoided semi-tractor dispatch coordination and commercial vehicle permit overhead can be a substantial percentage of small-job total cost

If your project lives in any of these categories — and most modern industrial nitrogen projects do — NitroTech is purpose-built for the work.

REAL-WORLD APPLICATIONS

What the Differentiators Look Like in the Field

Where smaller footprint, multi-test efficiency, and tight-access capability turn into actual project value.

Aerial view comparison: standard bobtail stages outside the fence line with long hose runs and safety risks, while NitroTech bumper-pull trailer goes inside the fence line for short hose runs, safer worksite, and maximum pressure deliveryNitroTech high-pressure nitrogen storage delivers more tests per fill — 4 sequential pressure tests (Sections A-D) on one fill, fewer resupply interruptions, more work done per shift

Click any image to read the field application breakdown.

DECISION GUIDE

Which One Do You Actually Need?

Five questions that determine the answer:

1. Can a 50-foot rig reach your tie-in point?

No → NitroTech.  Yes → both are options.

2. Sequence of tests or one operation?

Sequence → NitroTech high-pressure tubes.  Single op → either.

3. Does scope change risk repositioning?

Yes → NitroTech.  No → either works.

4. Multi-week continuous mainline flow?

Yes → traditional bobtail may be a stronger fit.

5. Mobilization timeline?

Same-day → NitroTech.  Plannable lead time → either.

Bottom line: The vast majority of modern industrial, refinery, chemical plant, data center, and pipeline tie-in work checks the boxes that favor NitroTech’s equipment. Sustained multi-week mainline pipeline operations are the exception. For everything else — NitroTech’s the better tool for the job.

✓

NITROTECH WINS WHEN

  • ✓  Tight-access sites where larger rigs can’t reach the tie-in
  • ✓  Multi-test or commissioning sequences completed in one shift
  • ✓  Fast mobilization & mid-job repositioning
  • ✓  East Coast refinery, chemical plant & LNG facility work
  • ✓  Data center construction & commissioning logistics
  • ✓  Pipeline tie-in and gathering system operations
  • ✓  Industrial maintenance & turnaround support
⚙

BOBTAIL WINS WHEN

  • ✓  Multi-week mainline pipeline operations with full semi access
  • ✓  Greenfield facilities designed around bobtail dimensions
  • ✓  Bulk single-operation jobs where logistics aren’t a constraint

COMMON QUESTIONS

Frequently Asked Questions

Straight answers to what buyers actually ask before booking a nitrogen service.

Is a bumper-pull nitrogen trailer right for industrial and refinery work?+
Yes — for most industrial, refinery, chemical plant, and data center work, a bumper-pull trailer is actually the better fit than a traditional bobtail. NitroTech's bumper-pull design reaches process units, chemical plants, and tight-access industrial sites that 40–55 foot bobtail rigs physically cannot enter. For sustained multi-week mainline pipeline operations with full semi access, a traditional bobtail remains a valid choice. For everything else along our service corridor, NitroTech is the better tool.
What's the operating pressure of a NitroTech trailer compared to a standard bobtail?+
NitroTech high-pressure tube trailers operate up to 6,500 PSI. Standard industry bobtails typically operate at around 2,200 PSI. Higher operating pressure means more usable nitrogen delivered at typical industrial test pressures — which translates to more tests per fill and fewer mid-sequence resupply interruptions on multi-test commissioning operations.
Does NitroTech require a semi-tractor to move the trailer?+
No — NitroTech trailers are bumper-pull style and tow behind a standard pickup truck rated for the trailer’s gross weight. A CDL driver is still required because of the loaded trailer weight, but you don’t need a semi-tractor or dedicated commercial rig. That flexibility means you can mobilize with equipment many operators already run in-fleet, repositioning between sites without dispatching a separate semi-tractor crew.
How quickly can NitroTech mobilize for an emergency or after-hours job?+
Same-day dispatch is operationally routine because there is no semi-tractor coordination layer. The operator who does the nitrogen work also handles the mobilization. For emergency response — suppression system accidental discharge, unplanned vessel opening, weather-window pipeline tie-in — this typically compresses mobilization timeline from 24–48 hours (CDL dispatch) down to hours.
Can NitroTech support multi-test commissioning sequences in a single shift?+
Yes — this is one of the operations our high-pressure tube storage was specifically engineered for. A typical bobtail's storage pressure drops below test thresholds after 2–3 tests, requiring mid-sequence resupply. NitroTech's high-pressure tubes deliver more usable nitrogen per fill, often completing 4–5 sequential tests on a single fill. For data center commissioning, pipeline pressure-test programs, and refinery turnaround restart sequences, this is operationally decisive.
What service areas does NitroTech cover with the bumper-pull trailer?+
NitroTech focuses on the East Coast industrial corridor — from the Delaware Valley refining corridor through New Jersey's chemical manufacturing cluster, into New York's utility infrastructure and New England's LNG facilities, and west through Pennsylvania, West Virginia, and the Appalachian gathering systems. Northern Virginia data center work and the emerging West Virginia data center market are growing focus areas. Coast-to-coast deployment is available for projects where our equipment delivers measurable value.
Is NitroTech the right call if I also need hydrostatic pressure testing?+
Yes — NitroTech is a division of HydroTech Testing. A single point of contact coordinates both nitrogen services and hydrostatic pressure testing for your project. This eliminates the scheduling conflicts that typically occur when nitrogen and pressure testing are managed by separate vendors, with simplified coordination across both services.
When does a traditional bobtail actually make more sense than NitroTech?+
For sustained multi-week mainline pipeline operations with full Class A semi access along the right-of-way, traditional bobtail rigs remain the more efficient choice. Greenfield facilities specifically designed around bobtail dimensions with permanent rig staging zones are also a strong bobtail fit. For everything else — the vast majority of modern industrial, refinery, chemical, data center, and pipeline tie-in work — NitroTech is the better tool. We will be straight with you about which fits your project.
NitroTech — Nitrogen Services Delivered Coast to Coast

Talk to an N2 Engineer About Your Actual Project

Tell us about the access reality, the operation sequence, and the schedule. We’ll be straight with you about whether NitroTech’s trailer delivers measurable value — or whether a standard bobtail is honestly the better fit.
